IR Proximity Sensor Module

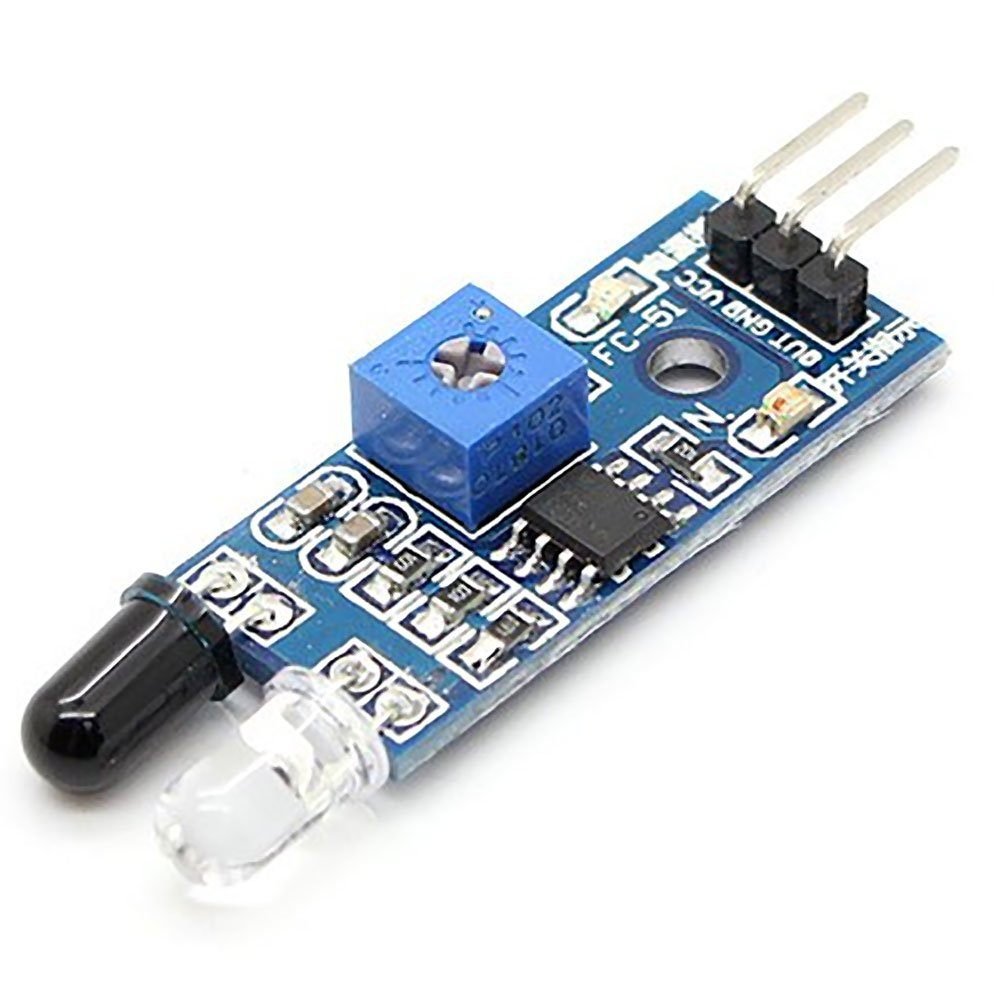

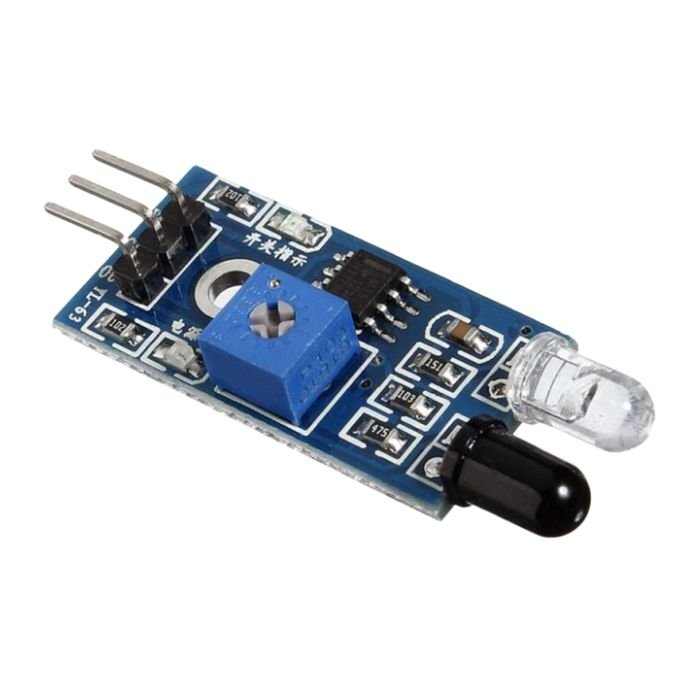

The IR Proximity Sensor Module is a compact and easy-to-use sensor designed to detect nearby objects using infrared light. It features an IR transmitter LED and receiver diode that work together to detect reflected infrared light from objects.

When an object comes within the sensor’s detection range, the emitted infrared light reflects from its surface and is detected by the receiver. The signal is then processed by an onboard comparator circuit, which provides a digital output that can be connected to a microcontroller, Arduino, relay module, or other electronic circuits.

The onboard adjustable potentiometer allows you to easily adjust the sensor’s detection sensitivity according to your application.

Key Features

• Infrared-based object detection
• Adjustable detection sensitivity
• Digital output signal
• Compact and easy-to-install design
• Compatible with microcontrollers and electronic control circuits
• Suitable for DIY electronics, robotics, automation, and embedded projects

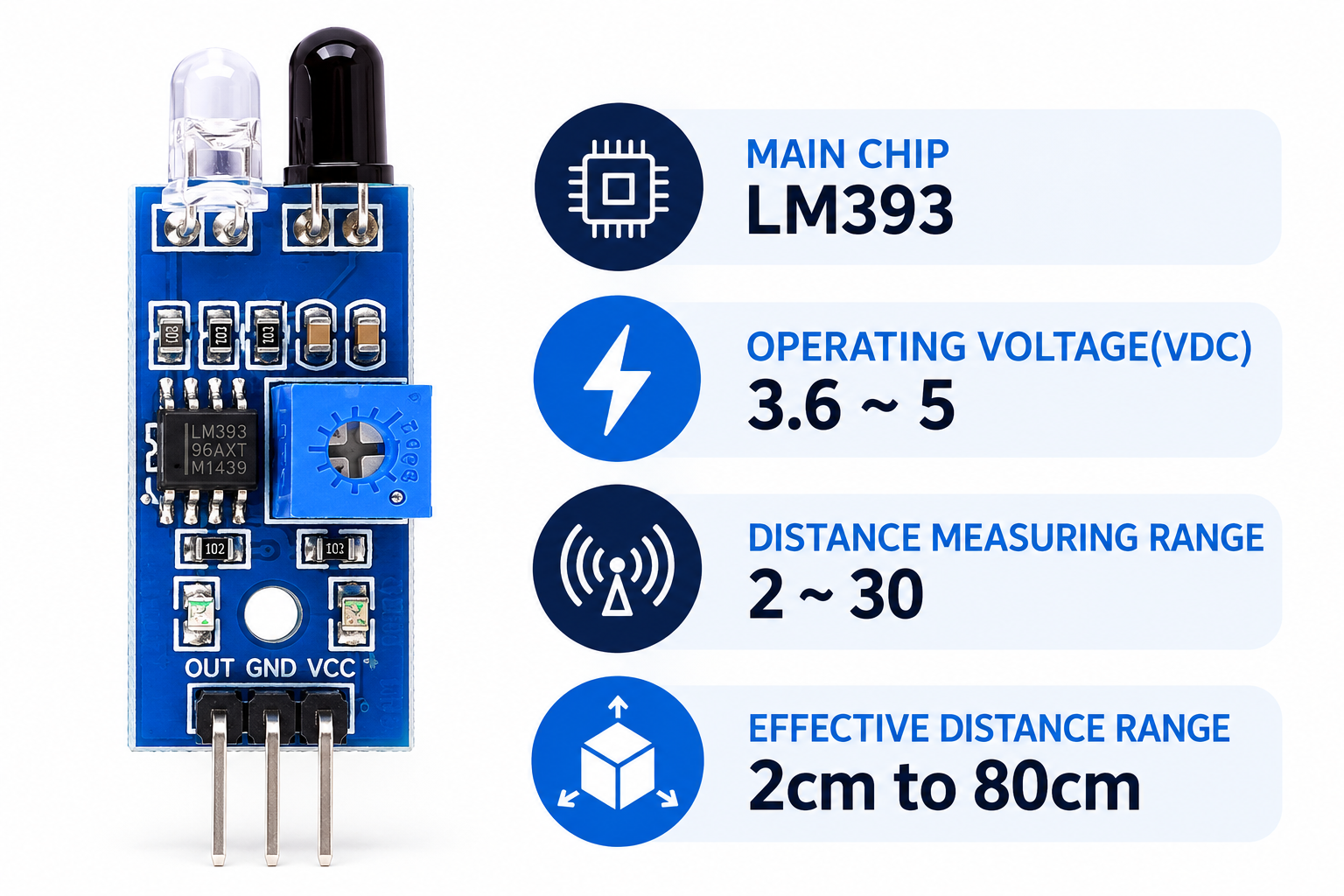

Specifications

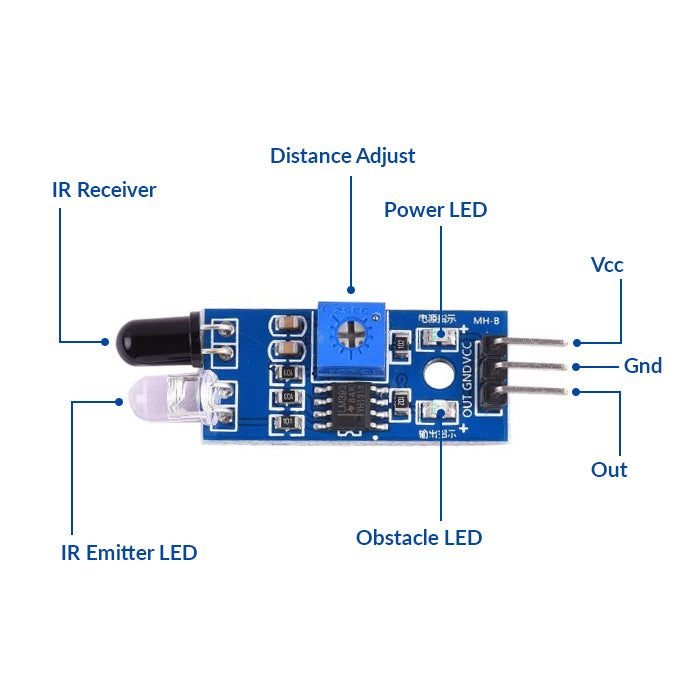

Pin Configuration

• VCC – Connect to the positive power supply (3–5 V DC)
• GND – Connect to ground
• OUT – Digital output signal

Typical Applications

• Object and proximity detection
• Automatic dispensers
• Robotics projects
• Obstacle detection
• Smart automation systems
• Arduino and microcontroller projects
• Relay-based switching applications
• DIY electronic projects

Note: Detection range may vary depending on the object’s size, color, surface reflectivity, ambient lighting, and sensitivity adjustment.
